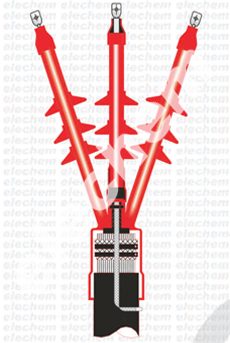

Heat Shirnkable Terminations suitable for 3 core XLPE/EPR/PVC Insulated Cable upto 24KV
GXO/I- 1524
Descriptions:
GXO/I - 1524 - Series termination kits are heat shrinkable type, designed for 3 core extruded dielectric, shielded, armoured/unarmoured XLPE/EPR/PVC insulated cables upto 24KV rated voltage (8.7/15KV, 11/11kV, 12.7/22KV, Um=24KV). Our kits has been designed to provide the basic important functions required for medium voltage power cable accessories including the electrical performance, stress relief measures, environmental seal, mechanical fatigues & other related performance parameters laid down in different countries for various service conditions. These are designed, manufactured and tested according to requirements of the local & internationally accepted standards.
Salient Features:
- Fits a wide dimensional range.
- Excellent electrical, thermal & mechanical performance.
- Accommodation of tolerances, different conductor cross sections & cable constructions.
- No shelf life limitations upto or below 50 deg C.
- Pre-designed components for easy & reliable installation.
- Each kit contains easy to follow instructions with well explained visual & graphics for step wise installation methods.
- Exceptional Insulation properties.
- High tracking resistance in harsh environment.
Specifications:
Test Sequence | Requirement Test Value | Results |
---|---|---|
A.C. Voltage Withstand, 5 Min | 57.1 kV, no Flashover | Pass |
D.C. Voltage Withstand, 15 Min | 50.8 kV no, Flashover | Pass |
Partial Discharge | 24 kV < 10Pc Max. | > 24 kV. |
Impluse Withstand Voltage | 125 kV < 10pc Max. | No breakdown |
Order Reference:
Cable Range (Sq. mm) | Indoor Kit code | OUTDoor Kit code |
---|---|---|
16-50 | GXI-21 | GXO-21 |
70-120 | GXI-22 | GXO-22 |
150-185 | GXI-23 | GXO-23 |
240-300 | GXI-24 | GXO-24 |
400-500 | GXI-24 | GXO-25 |
