Heat Shirnkable Teriniantions suitable for 3 core paper Insulated Lead Covered Mind Cable upto 24KV
Gpo/i-1524
Descriptions:

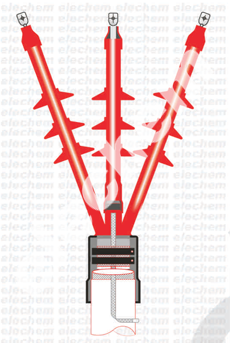

GPO/I - 1524 - Series termination kits are heat shrinkable type, designed for 3 core Paper Insulated Lead sheathed/armoured cables for upto 24KV. Our kits has been designed to provide the basic important functions required for medium voltage power cable accessories including the electrical performance, stress relief measures, environmental seal, mechanical fatigues & other related performance parameters laid down in different Countries for various service conditions. These are designed, manufactured and tested according to requirements of the local & internationally accepted standards.
Salient Features:
- Fits a wide dimensional range.
- Excellent electrical, thermal & mechanical performance.
- Suitable for all conductors shapes Materials & Conductors.
- Accommodation of tolerances, different conductor cross sections & cable constructions.
- No shelf life limitations upto or below 50 deg C.
- Pre-designed components for easy & reliable installation.
- Each kit contains easy to follow instructions with well explained visual & graphics for step wise installation methods.
- Exceptional Insulation properties.
- No Moisture ingress.
Specifications:
Test Sequence | Requirement Test Value | Results |
---|---|---|
A.C. Voltage Withstand, 1 Min | 50 kV, no Flashover | Pass |
D.C. Voltage Withstand, 15 Min | 96 kv,no Flashover | Pass |
Impluse Withstand Voltage | 125 kv,no Flashover | No Breakdown |
Order Reference:
Cable Range (Sq. mm) | Indoor Kit Code | Outdoor Kit Code |
---|---|---|
16-50 | GPI-21 | GPO-21 |
70-120 | GPI-22 | GPO-22 |
120-185 | GPI-23 | GPO-23 |
24.-300 | GPI-24 | GPO-24 |
400-500 | GPI-25 | GPO-25 |
